Optical Boxes/Patch Panels

Screws for SC-SC, SC-SC duplex, LC-LC duplex adapters, 100 pcs pack

Screws 2,2 x 6,5mm, cylindrical head, PH cross recess, for fixing SC-SC, SC-SC duplex, LC-LC duplex adapters to drawers and optical boxes, package 100pcs

View details →

Dust cap for patch panel SC simplex port, black

View details →

Dust cap for patch panel SC duplex port, black

View details →

Fiber optic termination module 3U/7HP - 6 LC-Dplx SM 9/125 adapters, blue colour - 12 LC SM 9/125 pigtails, splice tray, organizer, cover

Fiber optic termination module with 6 LC Duplex single-mode G652.D adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 6-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 6 LC-Dplx MM OM4 adapters, Erika colour - 12 LC OM4 pigtails, splice tray, organizer, cover

Fiber optic termination module with 6 LC Duplex multimode OM4 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 6-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 6 LC-Dplx MM OM3 adapters, Aqua colour - 12 LC OM3 pigtails, splice tray, organizer, cover

Fiber optic termination module with 6 LC Duplex multimode OM3 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 6-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 SC-Splx SM 9/125 adapters, blue colour - 12 LC SM 9/125 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 SC Simplex single-mode G652.D adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with SC Simplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 SC-Splx MM OM4 adapters, Erika colour - 12 SC OM4 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 SC Simplex multimode OM4 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with SC Simplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 SC-Splx MM OM3 adapters, Aqua colour - 12 LC OM3 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 SC Simplex multimode OM3 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with SC Simplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 LC-Dplx SM 9/125 adapters, blue colour - 24 LC SM 9/125 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 LC Duplex single-mode G652.D adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 LC-Dplx MM OM4 adapters, Erika colour - 24 LC OM4 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 LC Duplex multimode OM4 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

Fiber optic termination module 3U/7HP - 12 LC-Dplx MM OM3 adapters, Aqua colour - 24 LC OM3 pigtails, splice tray, organizer, cover

Fiber optic termination module with 12 LC Duplex multimode OM3 adapters and pigtails, fit for the installation in the modular fiber optic patch panel 4U. The module consists of a 12-port front panel with LC Duplex adapters, a plastic body with an integrated system for the management of pigtails and optical fibers and is equipped with a splice tray with organizer to protect the splices.

View details →

19"3 sliding FO patch panel, 24 blank ports for ST adapters - 1U - black

24-blank port sliding fiber optic patch panel for ST adapters, suitable for the splicing and connection of fiber optic cables into 19" racks. It is equipped with a sliding tray with cable guide and slotted holes connected to the cable inlet system, thus making installation much easier. Two frontal fastening rivets ensure fast opening and closing of the tray. The mounting brackets, adjustable in depth, allow the installation of the patch panel also into racks of reduced depth. Supplied with caps, cable glands and ties for managing and fastening of the optical fibers.

View details →

19"3 sliding FO patch panel, 24 blank ports for SC Simplex, LC Duplex, MTRJ adapters - 1U - black

24-blank port sliding fiber optic patch panel for SC Simplex, LC Duplex, MTRJ adapters, suitable for the splicing and connection of fiber optic cables into 19" racks. It is equipped with a sliding tray with cable guide and slotted holes connected to the cable inlet system, thus making installation much easier. Two frontal fastening rivets ensure fast opening and closing of the tray. The mounting brackets, adjustable in depth, allow the installation of the patch panel also into racks of reduced depth. Supplied with caps, cable glands and ties for managing and fastening of the optical fibers.

View details →

24-blank port 19" pullout fiber optic patch panel for SC-SC duplex adapters

24 blank port pullout fiber optic patch panel for SC-SC Duplex adapters, suitable for the splicing and connection of optic cables into 19" racks. They are provided with a pullout tray equipped with cable management accessories. Fast opening and closing of the tray is ensured by screws accessible on the front. The mounting brackets, adjustable in depth, allow the installation of the patch panel also into reduced depth racks.

View details →

19"3 sliding FO patch panel, 12 blank ports for SC Duplex adapters - 1U - black

12-blank port sliding fiber optic patch panel for SC Duplex adapters, suitable for the splicing and connection of fiber optic cables into 19" racks. It is equipped with a sliding tray with cable guide and slotted holes connected to the cable inlet system, thus making installation much easier. Two frontal fastening rivets ensure fast opening and closing of the tray. The mounting brackets, adjustable in depth, allow the installation of the patch panel also into racks of reduced depth. Supplied with caps, cable glands and ties for managing and fastening of the optical fibers.

View details →

19"3 modular FO patch panel 4U -84TE, Zinc-plated aluminium, depth 295 mm, BGT pullout tray 1U for cable extra supply, cable guide with 5 rings.

Modular fiber optic patch panel 4U, suitable for the splicing and connection of fiber optic cables into 19" racks. It consists of a 3U frame with front opening ? which hosts up to 12 optical modules to manage up to 288 fibers and a 1U pull-out tray, equipped with 5 front rings for the horizontal cable management and 12 pre-sheared rear PG16 holes for the cable inlet. The patch panel can be fitted with different optical modules according to the specific needs (see Optical modules for patch panel 4U).

View details →

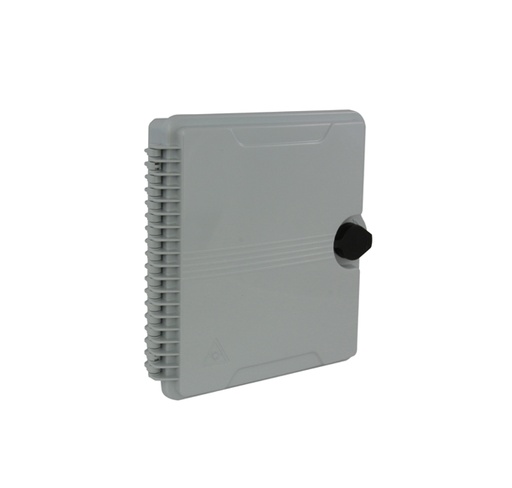

IP65 MDU 12-blank port optical box with panel fo SC simplex/LC duplex adapters, splice tray, lockable door with safety key

IP 65 MDU 12-blank port optical box for multi-fiber building systems for the distribution of the antenna and satellite optical signals or internet connectivity through wireless systems. Both for indoor and outdoor installations, on wall or pole, it is designed for FTTH and FTTB systems for cable-to-cable in line splices and terminations through pigtails or connectors.

View details →

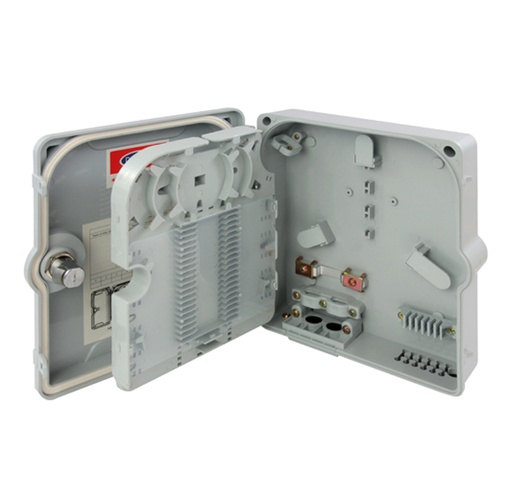

24-port MDU IP65 blank box with 24-port patch panel for splx/LC dplx adapters, splice tray, door with keylock

IP 65 MDU 24-port blank box for SC simplex or LC duplex adapters. Both for indoor and outdoor installations, on wall or pole, it is designed for FTTH and FTTB systems.

View details →

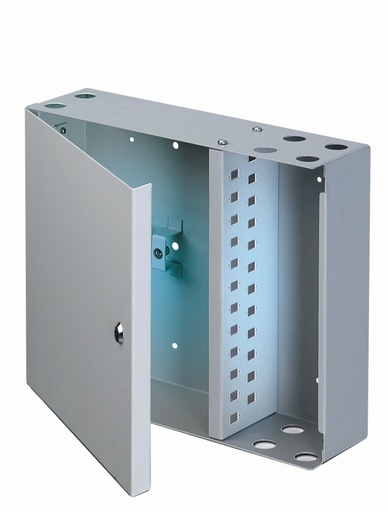

24-blank port wall-mounted optical box for ST simplex adapters - grey RAL 7035

24-blank port wall-mounted optical box for ST simplex adapters, suitable for the optical cables splicing and pigtail connections. The splicing area allows the entry of the optical cables from above and below and the containment of the splicing trays the patch area protects the connections and allows the wiring maintenance.

View details →

24-blank port wall-mounted optical box for SC simplex or LC duplex adapters - grey RAL 7035

24-blank port wall-mounted optical box for SC simplex or LC duplex adapters, suitable for the optical cables splicing and pigtail connections. The splicing area allows the entry of the optical cables from above and below and the containment of the splicing trays### the patch area protects the connections and allows the wiring maintenance.

View details →

6-port optical box for SC Duplex adapters, installation on DIN-rails, with integrated splice trays organizer, grey RAL 7035

6-port optical box for SC Duplex adapters, for industrial applications. Suitable for the installation on DIN-rails, they host up to 12 optical fibers. Equipped with integrated splice trays organizer.

View details →

6-port optical box for SC Simplex/LC Duplex adapters, installation on DIN-rails, with integrated splice trays organizer, grey RAL 7035

6-port optical box for SC Simplex/LC Duplex adapters, for industrial applications. Suitable for the installation on DIN-rails, they host up to 12 optical fibers. Equipped with integrated splice trays organizer.

View details →

4-port optical box for ST Simplex adapters, installation on DIN-rails, with integrated splice trays organizer, grey RAL 7035

4-port optical box for ST Simplex adapters, for industrial applications. Suitable for the installation on DIN-rails, they host up to 12 optical fibers. Equipped with integrated splice trays organizer.

View details →
